Intersection Traffic Controllers (ITC)

ITC WEB INTERFACE ITC-2 TRAFFIC CONTROLLER ITC-2 Mini Traffic Controller

ITC WEB INTERFACE

ITC Web Interface

A Powerful Tool (In Collaboration with SWARCO)

The new ITC Web Interface brings web control of the ITC-3 Traffic Controller to your office or in the field. You can connect to the interface with a web browser. The remote control provides extended capabilities to view and modify parameters in an easy and intuitive way. These powerful tools provided by the front panel of the ITC-3 Controller are also available through the ITC Web Interface enabling flexible and better management of your intersections.

Key Features

  • An easy-to-use interface for operational and administrative tasks.

  • Additional tools compared to the physical front panel of the ITC-3 traffic controller.

  • Access from any location that can launch a web browser.

  • Flexible and powerful security features.

  • The ability to provide additional help text and view annotations in a supported national language.

Technical Details

  • System Overview

    Displays the current overall status for the controller as well as information about the intersection(s) controlled. The user may change the current traffic plan, traffic situation and view the error log.

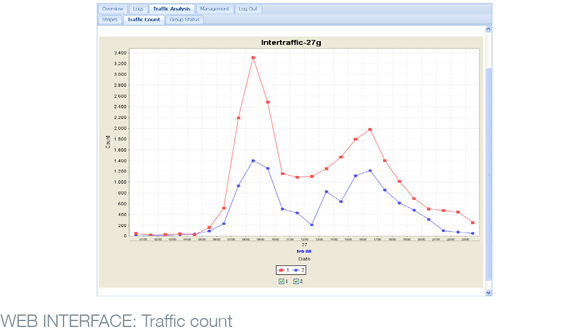

  • Traffic Count

    Provides a dialog box for defining the number of vehicle counters and the start/end of the counting interval. The results are displayed with user defined resolution.

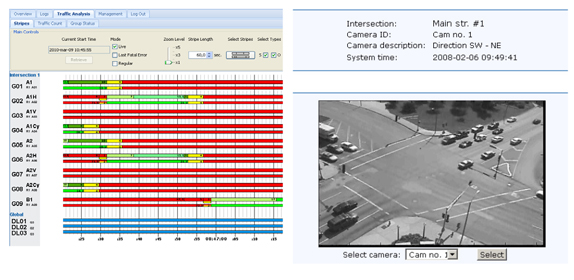

  • Stripes

    Displays diagrams showing the colour schemes of user selectable signal groups within a specified interval.

  • Error, Detector, Lamp, Event, Plan-Logs

    Provides detailed log entries with descriptions divided on the basis of time, mode, code and a message describing the log entry.

  • Webcam

    Displays a live image of the selected intersection.

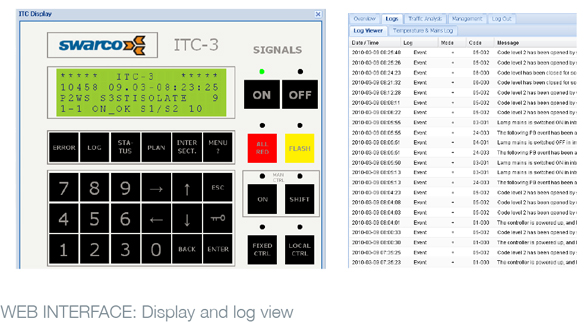

  • ITC-3 Display

    Emulates the functions of the controller’s front panel.

  • ITC-3 Terminal

    Provides a textual user interface, coupled to the programmable functions of the controller.

  • User Management

    Enables the creation of users and editing of their rights to specific tasks and services in the ITC-3 Web Interface.

  • Server Management

    Provides server specific information and functionality to set up basic parameters of the ITC-3 Controller.

  • ITC-3 Configuration

    Provides an upload feature for new ITC-PC configuration files as well as the possibility to download the current configuration.

  • My Account

    Allows the user to edit his/her password.

Requirements on the user’s side:

  • Supported browsers: Internet Explorer 6 or higher, Mozilla/Firefox 2.0 or higher.

  • Screen resolution: 1024x768 or higher.

  • The browser must have JavaScript and Cookies enabled.

  • Java 5 (J2SE 5.0) or better from Sun Microsystems.

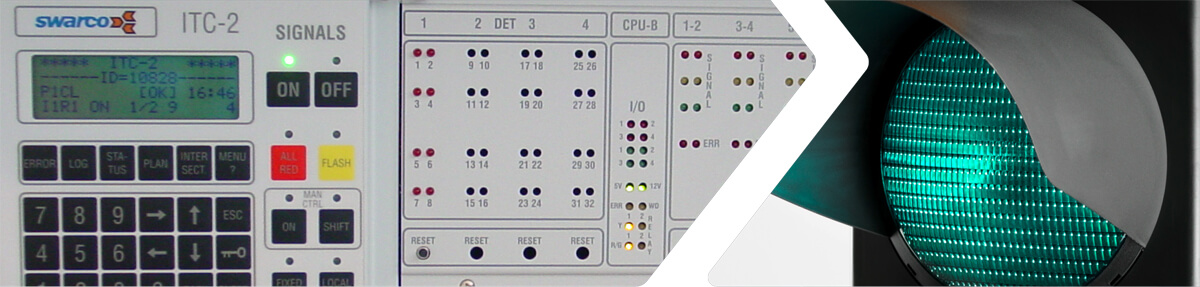

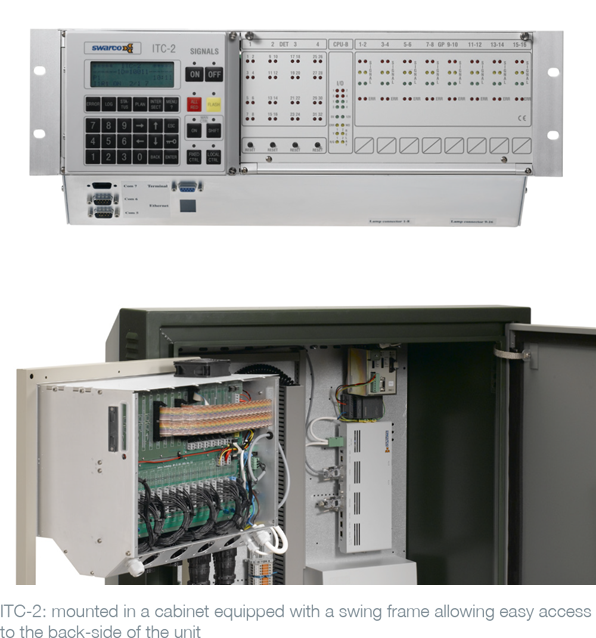

ITC-2 TRAFFIC CONTROLLER

traffic controller

ITC-2 has been designed and developed according to European and inter-national standards and is suitable for all climatic conditions. It is modular in design and can be configured for all types of intersections. Using TCP/IP or 3G modem it can be directly connected to many control and monitoring systems. The controller can be delivered in three different sizes depending on the number of signal groups required - the 3U rack with 16 signal groups and 32 detectors, 32 and 64 signal groups and 80 detectors.

SWARCO TECHNOLOGY APS

Swarco Technology APS

SWARCO TECHNOLOGY develops and markets traffic and motorway controllers as well as communication equipment for traffic management systems. Thousands of SWARCO products have been installed and are now in use in different applications in many countries.

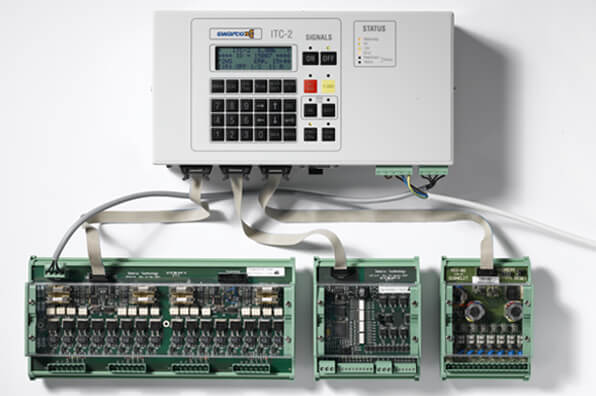

ITC-2 Mini Traffic Controller

traffic controller

ITC-2 Mini Traffic Controller is a low-cost version of the ITC-2 Traffic Controller, providing the same modular design and flexibility of the ITC-2. This mini-version is a cost-effective choice for small intersections and pedestrian crossings. It has four signal groups and can be installed on a DIN-rail in a small cabinet. The controller has been developed according to European and inter-national standards.

SWARCO TECHNOLOGY APS

mini traffic controller

SWARCO TECHNOLOGY develops and markets traffic and motorway controllers as well as communication equipment for traffic management systems. Thousands of SWARCO products have been installed and are now in use in different applications in many countries.
